X350 Compost Extractor

Our Compost Extractors use an auger water jet system to efficiently dislodge beneficial microorganisms from compost. Compost is introduced into the hopper, where a variable-speed auger transports it through the machine. This adjustable mechanism allows precise control over the amount of compost entering the extraction chamber.

To prevent bridging and ensure a consistent flow of compost into the extraction chamber, the hopper features an adjustable water agitation system that breaks static friction along its edges, dislodging material and promoting smooth, uninterrupted flow.

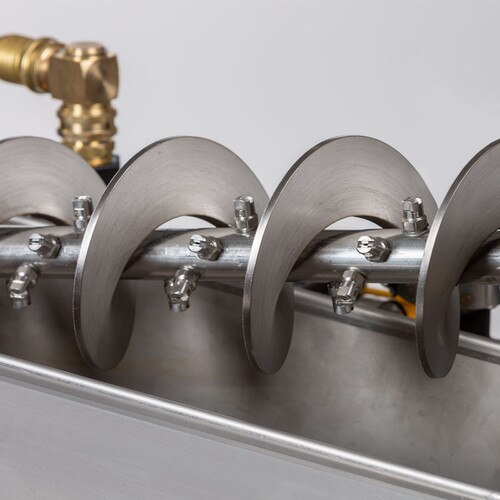

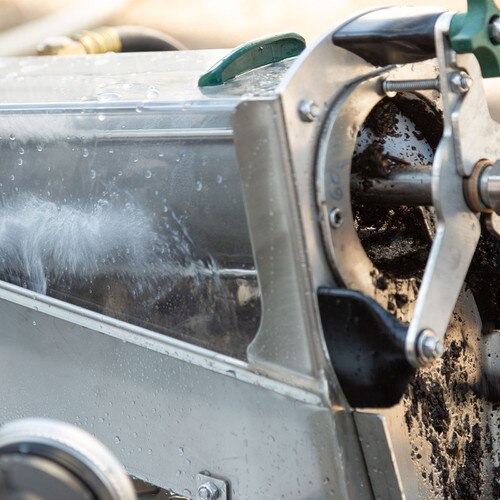

As the compost moves through the extractor, water jets placed strategically along the auger rinse the material. A Booster Pump ensures sufficient water pressure is applied to extract microbial communities without damaging them. A cylindrical sieve encases the auger and water jet configuration, filtering microorganisms from solid material. The sieve is easily interchangeable, conveniently allowing for the use of different mesh screens to achieve various levels of filtration.

By adjusting the auger speed and sieve size, operators can fine-tune the concentration and sediment load of the extract. This level of control is crucial for maintaining the integrity and consistency of the final product.

Key Features

• Produces up to 725 gallons of extract per hour
• Patent pending stepped auger design
• Prevents overloading extraction chamber for dependable operation.
• Allows easy and precise control of extract concentration
• Water agitation prevents bridging in the hopper
• Optional hopper extension holds 36 gallons of compost, allowing an hour of run-time without reloading.
• Solenoid shuts off flow when power is cut, allowing the extractor to run on a timer (not included).
• Pressure regulating extraction pump
• Choice of sturdy outdoor wheels or solid feet
• Slip clutch protects motor in the event of auger jam

Inlet and Discharge hose connection sizes.

• Water supply connection: 2" female camlock.
• Extract discharge connection: 2" male camlock.

Hopper Options

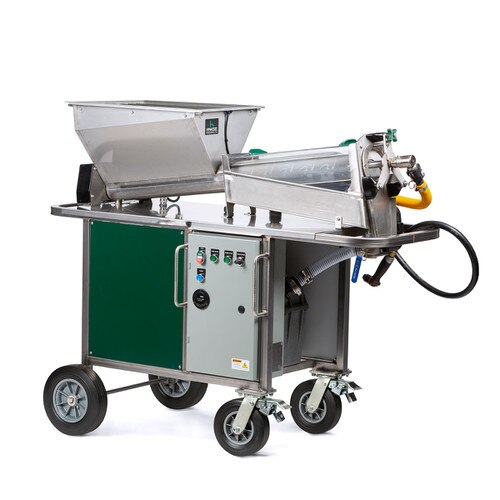

• Small hopper: 12 gal capacity

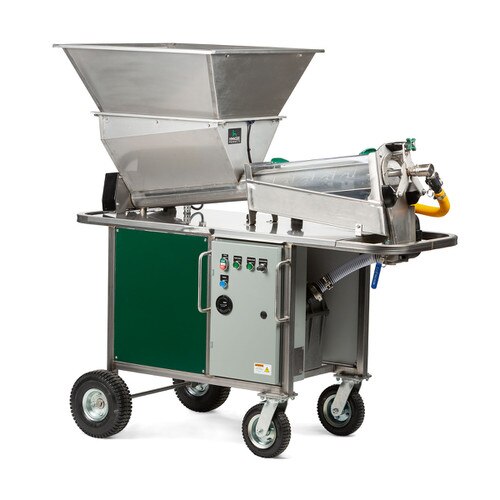

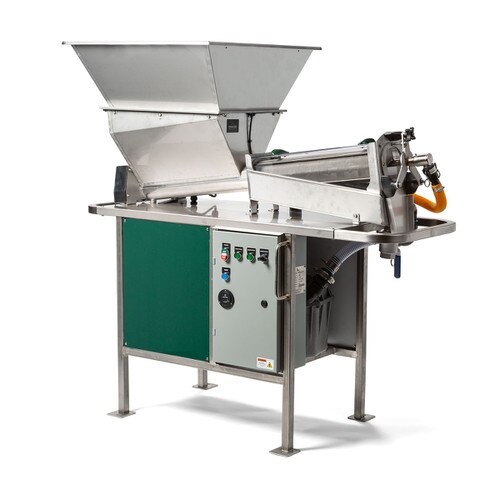

• With hopper extension: 36 gal capacity

Electrical Supply

• 120 VAC, 1PH, 60 Hz

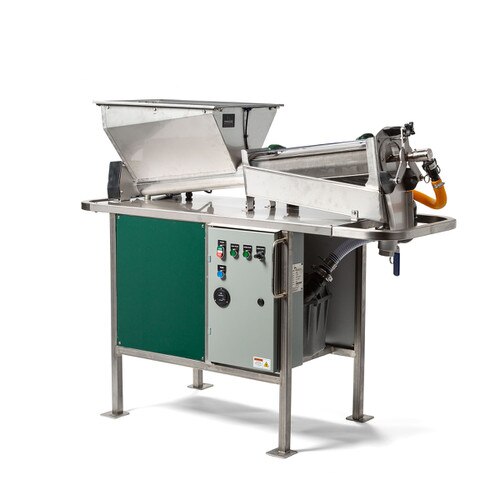

Cart and Stand Options

• Dimensions:


  • With small hopper: L 58" x W 28" x H 48", weight
  • With hopper extension: L58" x W 28" x H 58"

Wheels (cart option only):

• Fully locking 8" casters in the front, 10" fixed wheels in the back. Wheels are solid (Never Flat) rubber.

Cleaning spray hose

• Optional on all models and is available separately.

Product Manual

X350 EXTRACTOR MANUAL.PDF

Learn more about Liquid Compost Extract

COMPOST EXTRACT RESOURCE GUIDE.PDF

Support

Schedule a free call with our TECHNICAL SUPPORT team if you would like more information on which extractor is best for you.
