X250 Compost Extractor

Our Compost Extractors use an auger water jet system to efficiently dislodge beneficial microorganisms from compost. Compost is introduced into the hopper, where a variable-speed auger transports it through the machine. This adjustable mechanism allows precise control over the amount of compost entering the extraction chamber.

To prevent bridging and ensure a consistent flow of compost into the extraction chamber, the hopper features an adjustable water agitation system that breaks static friction along its edges, dislodging material and promoting smooth, uninterrupted flow.

As the compost moves through the extractor, water jets placed strategically along the auger rinse the material. A Booster Pump ensures sufficient water pressure is applied to extract microbial communities without damaging them. A cylindrical sieve encases the auger and water jet configuration, filtering microorganisms from solid material. The sieve is easily interchangeable, conveniently allowing for the use of different mesh screens to achieve various levels of filtration.

By adjusting the auger speed and sieve size, operators can fine-tune the concentration and sediment load of the extract. This level of control is crucial for maintaining the integrity and consistency of the final product.

Key Features

• Produces up to 500 gallons of extract per hour
• Patent pending stepped auger design
• Prevents overloading extraction chamber for dependable operation
• Allows easy and precise control of extract concentration
• Water agitation prevents bridging in the hopper
• Optional hopper extension holds 36 gallons of compost, allowing an hour of run time without reloading
• Choice of bench mount for gravity flow, stationary stand with transfer pump or cart with transfer pump
• Slip clutch protects motor in the event of auger jam

Inlet and Discharge hose connection sizes.

• Water supply connections: 1" female camlock.
• Extract discharge connection: 2" male camlock on all options.


  • If the transfer pump was not purchased, a 4 ft length of 2" hose with female camlock is supplied with the extractor for discharge into a receptacle positioned by the catch basin discharge.

Hopper Options

• Small hopper: 12 gal capacity
• With hopper extension: 36 gal capacity

Electrical Supply

• 120 VAC, 1PH, 60 Hz

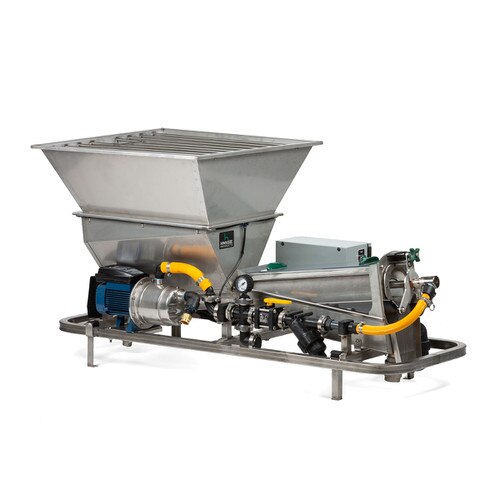

• Bench Top Option Specs:
• L 58" x W 21" x H 23", 95 lbs. weight and height vary depending on options.

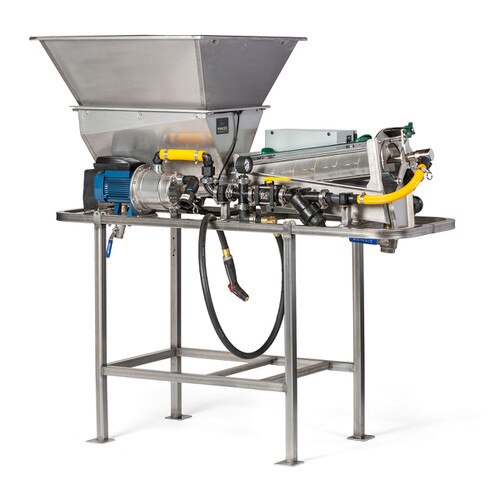

Cart and Stand Options

• L 58" x W 28" x H 48", weight and height vary depending on options.
• Optional single phase 120 VAC extract transfer pump (see pump options).

Pump Options

• The electrical box on the extractor includes a plug to power a 120v transfer pump.
• The extract transfer pump is available with the stand and cart options. It allows for easy transfer of extract into a large holding tank or sprayer.
• It is a standalone pump with an internal float switch that triggers the pump to run automatically when filled with liquid.
• Transfer pump can be purchased as an after-sale upgrade.

Cleaning spray hose

• Optional on all models and is available separately.

Product Manual

X250 EXTRACTOR MANUAL.PDF

Learn more about Liquid Compost Extract

COMPOST EXTRACT RESOURCE GUIDE.PDF

Support

Schedule a free call with our TECHNICAL SUPPORT team if you would like more information on which extractor is best for you.
