X100 Compost Extractor
FEATURES

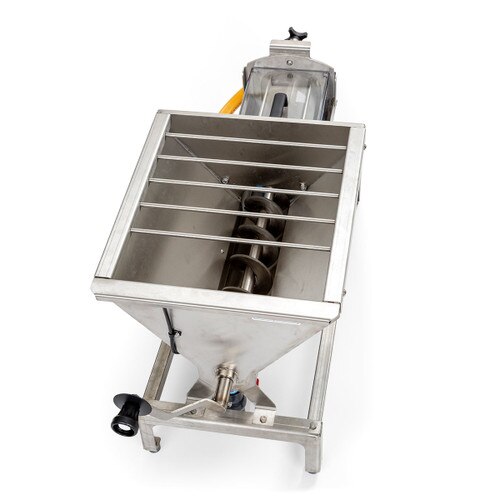

Our Compost Extractors use an auger water jet system to efficiently dislodge beneficial microorganisms from compost. Compost is introduced into the hopper, where a variable-speed auger transports it through the machine. This adjustable mechanism allows precise control over the amount of compost entering the extraction chamber.
To prevent bridging and ensure a consistent flow of compost into the extraction chamber, the hopper features an adjustable water agitation system that breaks static friction along its edges, dislodging material and promoting smooth, uninterrupted flow.
As the compost moves through the extractor, water jets placed strategically along the auger rinse the material. A cylindrical sieve encases the auger and water jet configuration, filtering microorganisms from solid material. The sieve is easily interchangeable, conveniently allowing for the use of different mesh screens to achieve various levels of filtration.
By adjusting the auger speed and sieve size, operators can fine-tune the concentration and sediment load of the extract. This level of control is crucial for maintaining the integrity and consistency of the final product.
Key Features
- Produces up to 250 gallons of extract per hour
- Patent pending stepped auger design prevents overloading extraction chamber for dependable operation
- Allows easy and precise control of extract concentration
- Manual auger operation allows off-grid operation if water pressure is sufficient
- Water agitation prevents bridging in the hopper
SPECS
Inlet Hose Connection
- ¾" GHT female garden hose water supply connection
Discharge Hose Connection
- 1.5" male camlock discharge connection
- A 4 ft length of 1.5" hose with female camlock is supplied with the extractor for discharge into a receptacle positioned by the catch basin discharge.
Hopper Capacity
- 6 gallons
Dimensions
- L 42" x W 15" x H 20", 51 lbs.
- Ships via UPS® Ground
RESOURCES
Product Manual
Learn more about Liquid Compost Extract
COMPOST EXTRACT RESOURCE GUIDE.PDF
Support
Schedule a free call with our TECHNICAL SUPPORT team if you would like more information on which extractor is best for you.
